Drill Concrete With Less Airborne Dust and Less Cleanup

Capture masonry dust directly at the drilling point. This innovative hollow-core drill bit system pulls debris through the center of the bit and directs it into the transparent collection chamber or a connected shop vacuum.

Capture Dust While You Drill

Front intake ports collect concrete, brick and masonry debris as it is created. The hollow internal channel moves dust away from the drilling point before it can spread across the surrounding area.

Cleaner Work Area

Reduce loose dust around walls, floors and nearby furniture. The system is ideal for indoor renovation projects, occupied homes, garages and outdoor installation work.

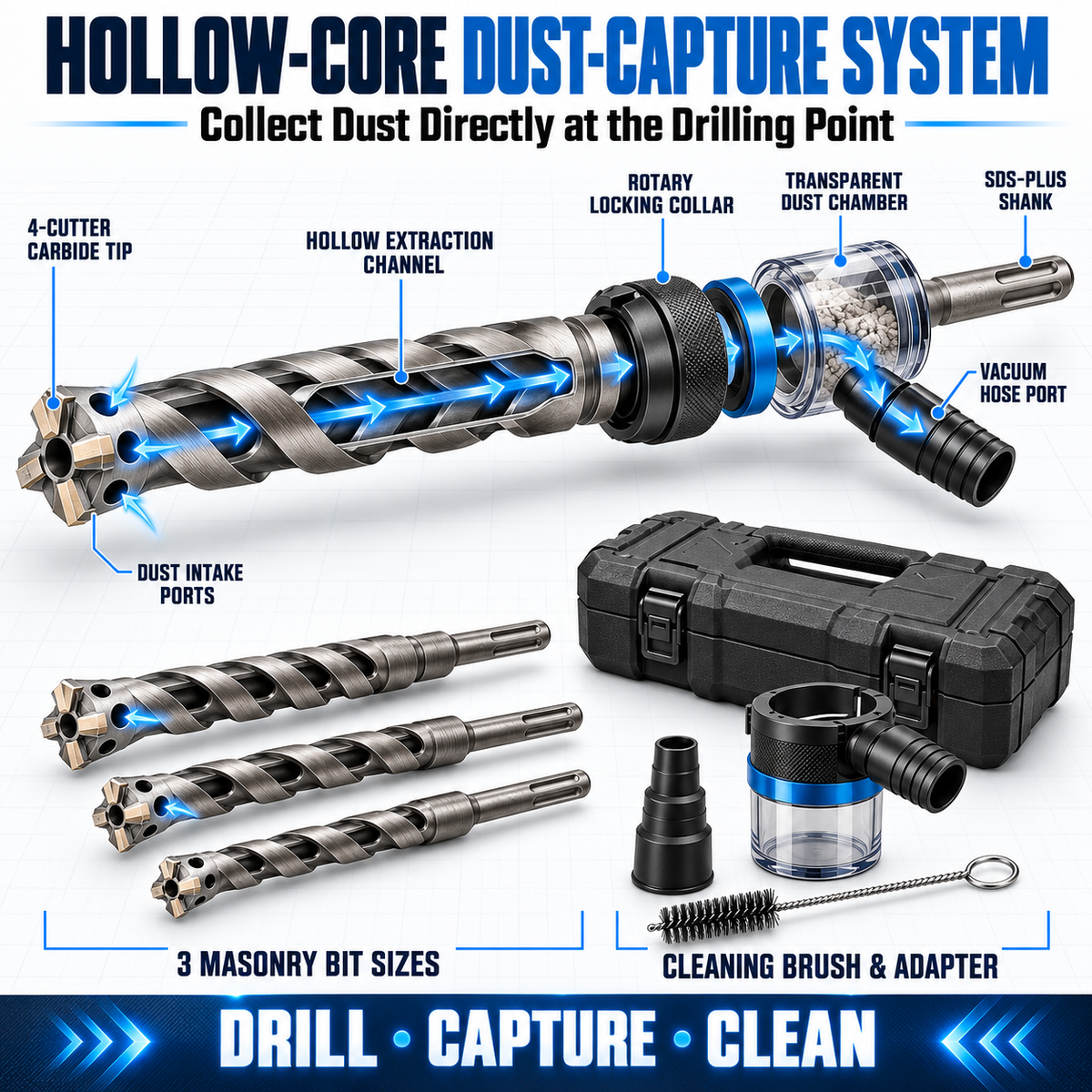

Hollow-Core Extraction Channel

Unlike conventional solid drill bits, the internal extraction path carries dust through the bit toward the rear collection system.

Four-Cutter Carbide Tip

The reinforced cross-shaped carbide head provides multiple contact points for controlled drilling into concrete, brick and masonry surfaces.

Two Dust-Control Options

Use the Transparent Collection Chamber

The removable chamber captures dust without requiring a separate vacuum, making it convenient for quick household projects.

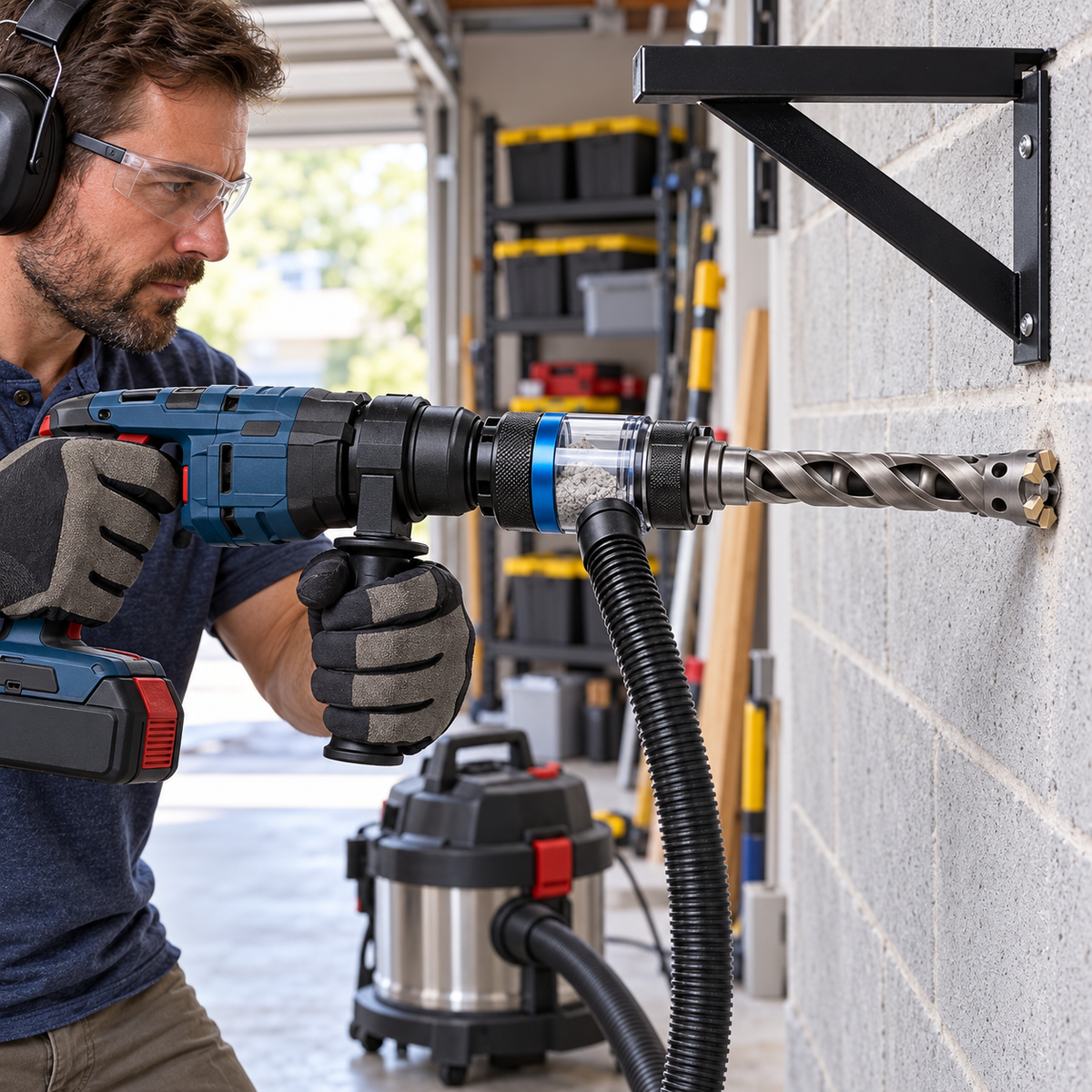

Connect a Shop Vacuum

Attach a compatible vacuum hose to the side port for continuous dust extraction during longer drilling jobs.

Transparent Dust Chamber

See the collected debris at a glance and know when it is time to empty the chamber. The removable design also makes routine cleaning easier.

SDS-Plus Connection

The SDS-Plus-style shank is designed for compatible rotary hammers, providing secure tool engagement during masonry drilling.

Three Useful Sizes

The set includes three drill-bit diameters for common household and construction applications:

1/2 in / 13 mm — Anchors, brackets and smaller mounting hardware

3/4 in / 19 mm — Medium-duty fasteners and installation projects

1-1/4 in / 32 mm — Larger anchors, pass-through holes and heavy mounting applications

Ideal for Home and Outdoor Projects

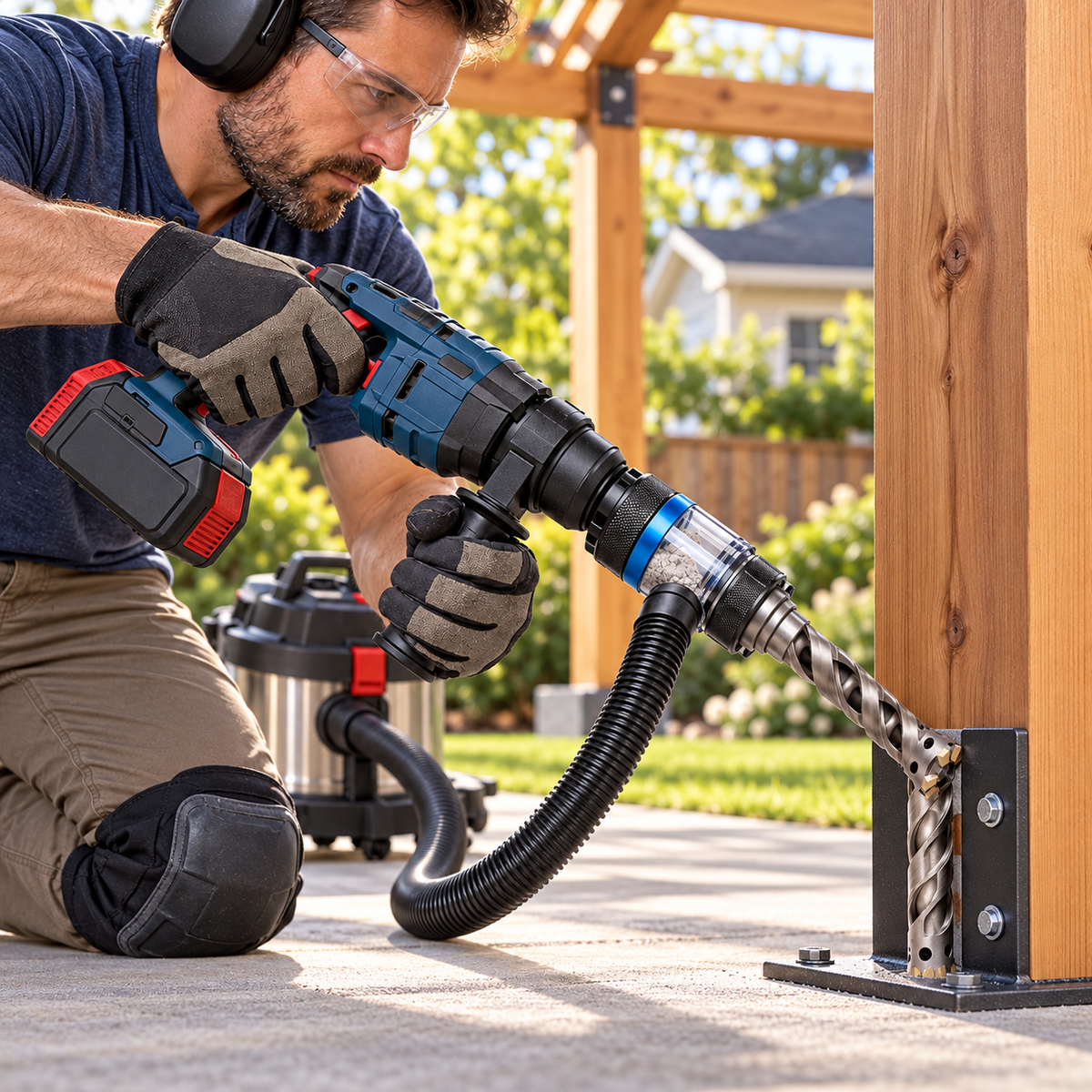

Use it for garage storage systems, concrete-wall shelving, pergola bases, railing posts, masonry anchors and renovation work.

Key Features

Integrated hollow-core dust channel
Front dust-intake ports
Four-cutter carbide drilling head
Removable transparent collection chamber
Vacuum-hose connection port
Three masonry drill-bit sizes
SDS-Plus-style shanks
Cleaning brush and hose adapter included
Protective carrying case

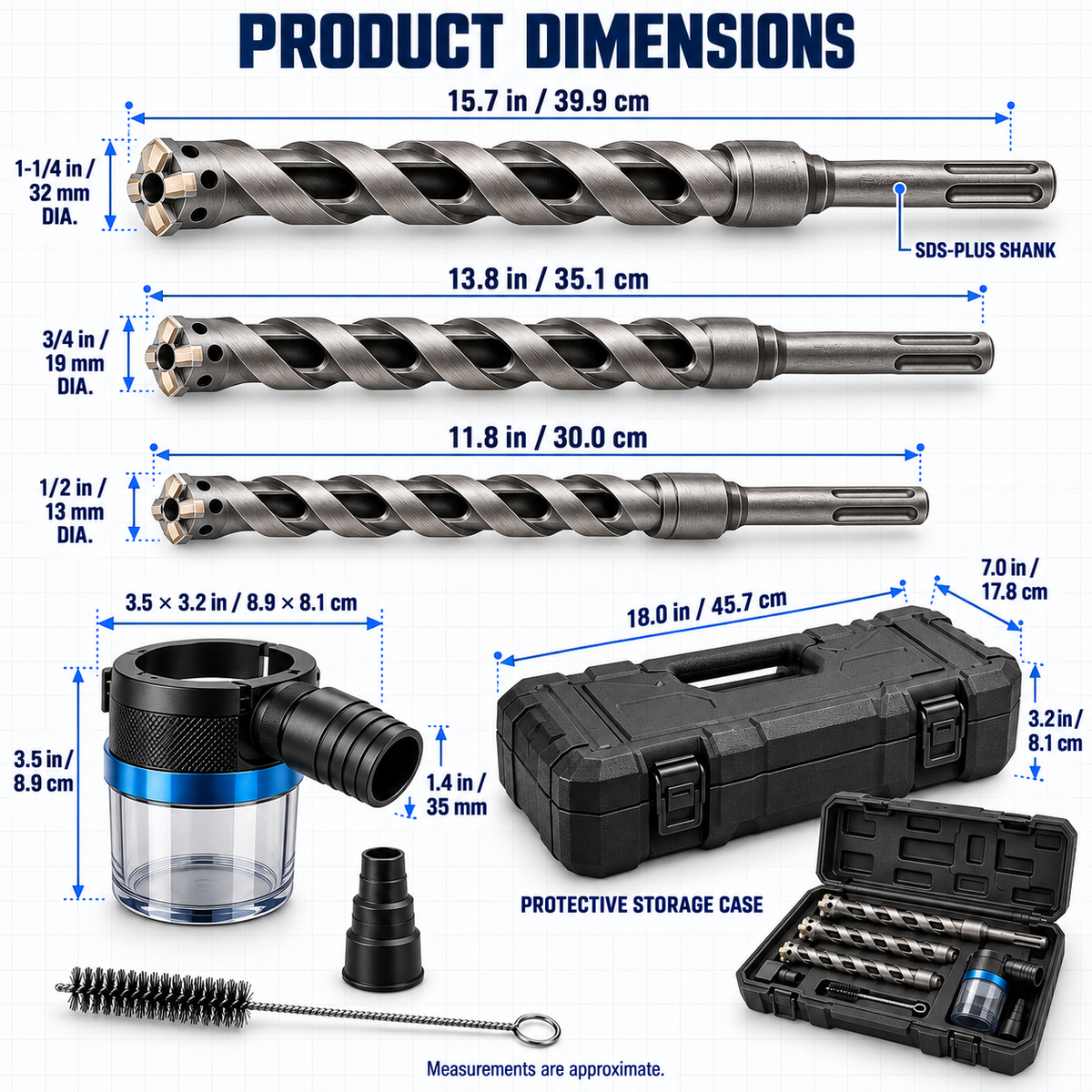

Suggested Product Dimensions

Large Bit: 15.7 in × 1-1/4 in / 39.9 cm × 32 mm
Medium Bit: 13.8 in × 3/4 in / 35.1 cm × 19 mm
Small Bit: 11.8 in × 1/2 in / 30.0 cm × 13 mm
Dust Chamber: 3.5 × 3.2 in / 8.9 × 8.1 cm
Vacuum Port: 1.4 in / 35 mm
Storage Case: 18.0 × 7.0 × 3.2 in / 45.7 × 17.8 × 8.1 cm

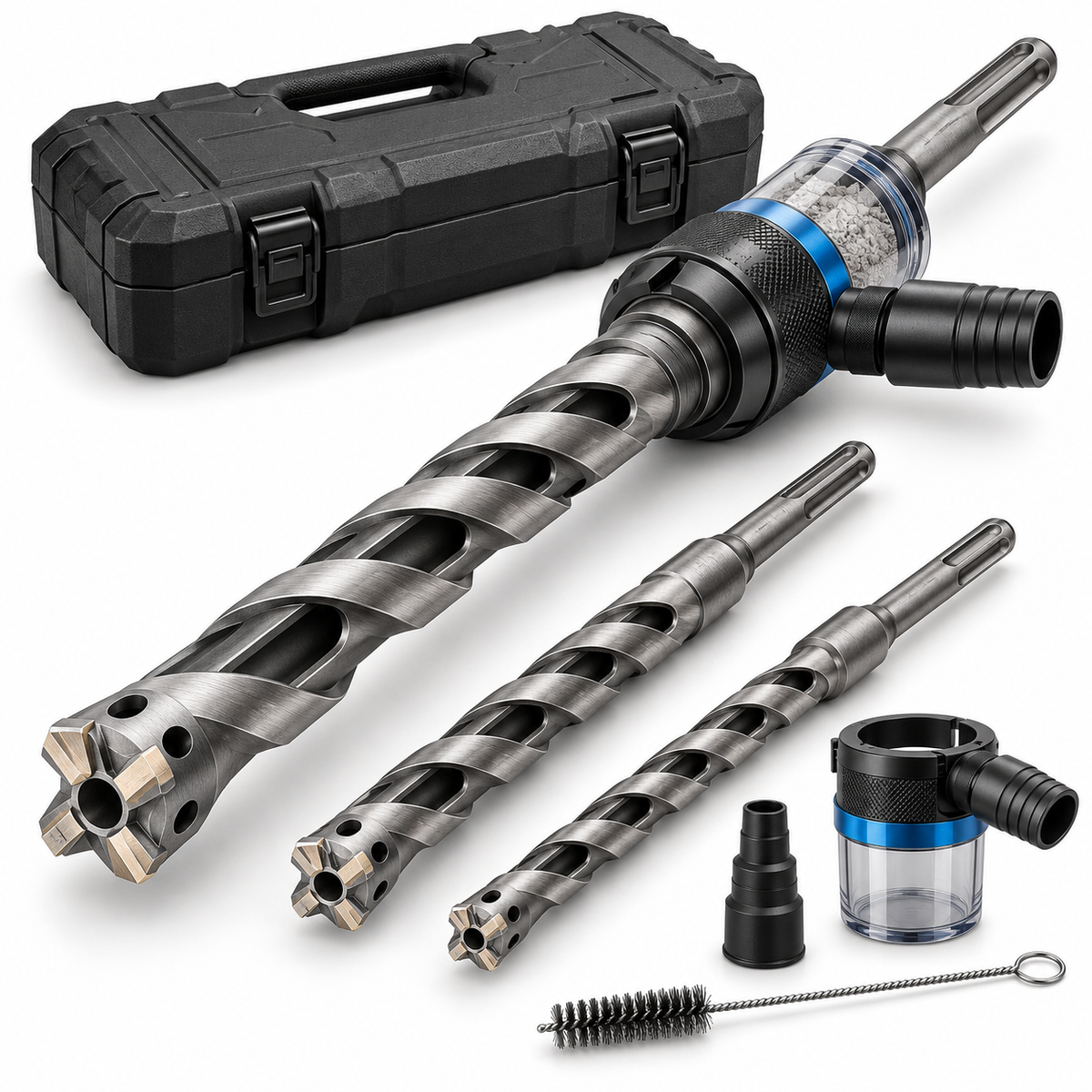

What’s Included

3× Hollow-Core Masonry Drill Bits
1× Dust-Extraction Collar
1× Transparent Dust Chamber
1× Vacuum-Hose Adapter
1× Cleaning Brush
1× Protective Storage Case

Drill More. Breathe Less Dust. Clean Up Faster.

Upgrade your masonry projects with a smarter drilling system that captures debris at the source.

GET YOUR DUST-CAPTURE DRILL BIT SET TODAY

Concept product: dimensions, compatibility and performance specifications are approximate and should be confirmed before manufacturing or retail use. Always wear appropriate eye, hearing and respiratory protection when drilling masonry.
